A high frequency electronic transformer for operation with 12V halogen lamps. It is fully IEC compliant with unique compact size and light weight

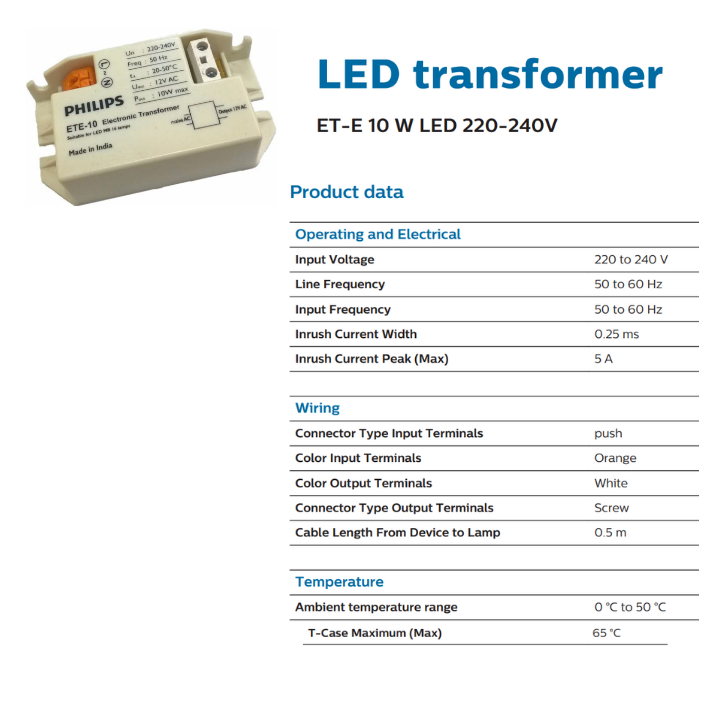

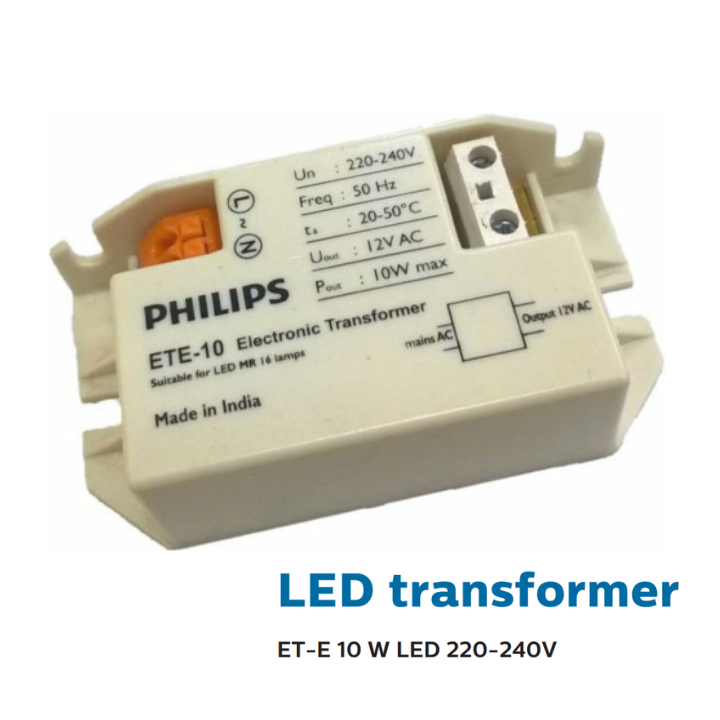

ET-E 10W LED 220V-240V Operating and electrical
Input Voltage 220 to 240 V
Input frequency 50 to 60 Hz
ower factor 100% load (nom.) 0.94
Mains voltage performance (AC) 202...254V
Mains voltage safety (AC) 198...264V
Inrush current width 0.10 ms
Power losses (nom.) 1 W
Inrush current peak (max.) 15 A
Output voltage - V

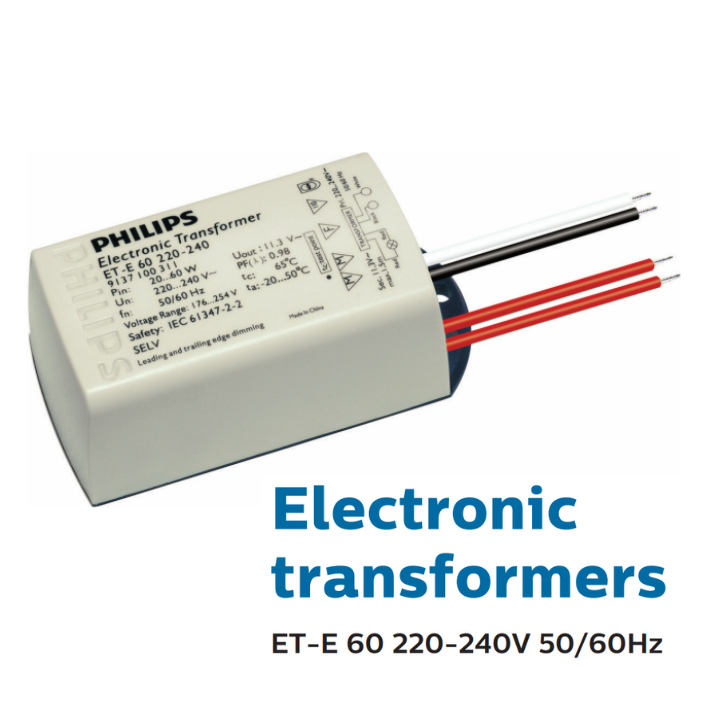

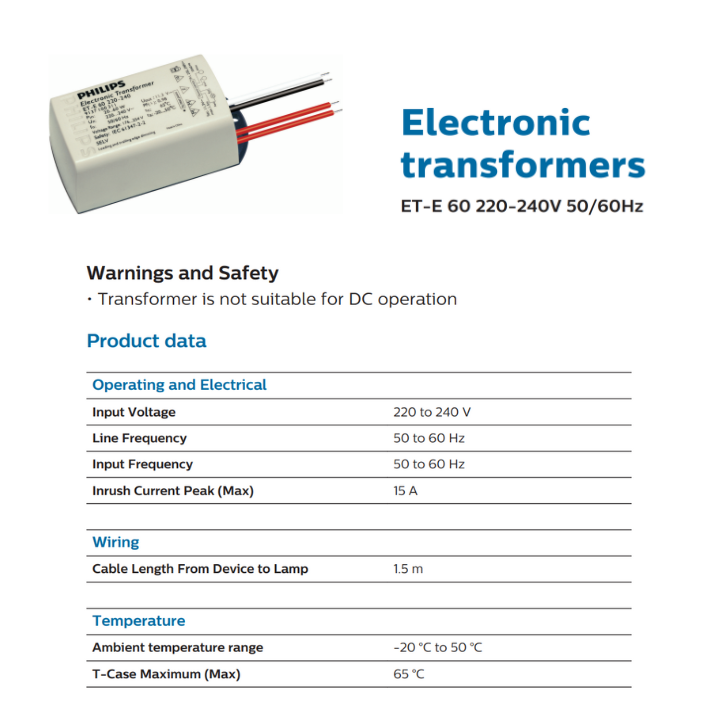

ET-E 60 220-240V 50/60Hz Operating and Electrical
Input Voltage 220 to 240 V
Line Frequency 50 to 60 Hz
Input Frequency 50 to 60 Hz
Inrush Current Peak (Max) 15 A
Wiring Cable Length From Device to Lamp 1.5 m
Temperature Ambient temperature range -20 °C to 50 °C
T-Case Maximum (Max) 65 °C
