Features:
Exhaust type
The fan shall be suitable for ceiling mounting
Low noise type with high-low speed
Condenser motor with thermal cut-off
Well lubricated bearing for long life operation
High performance Sirocco Fan adopted to control air turbulence effectively
Details:
Reverse flow prevention shutter is installed on the side of the adapter
Seam-processed casing
Long-life Motor
High performance sirocco fan
Square to round adapter equipped with nail
Cassette type discharge opening
Pre-painted colour steel casing
One-touch louver

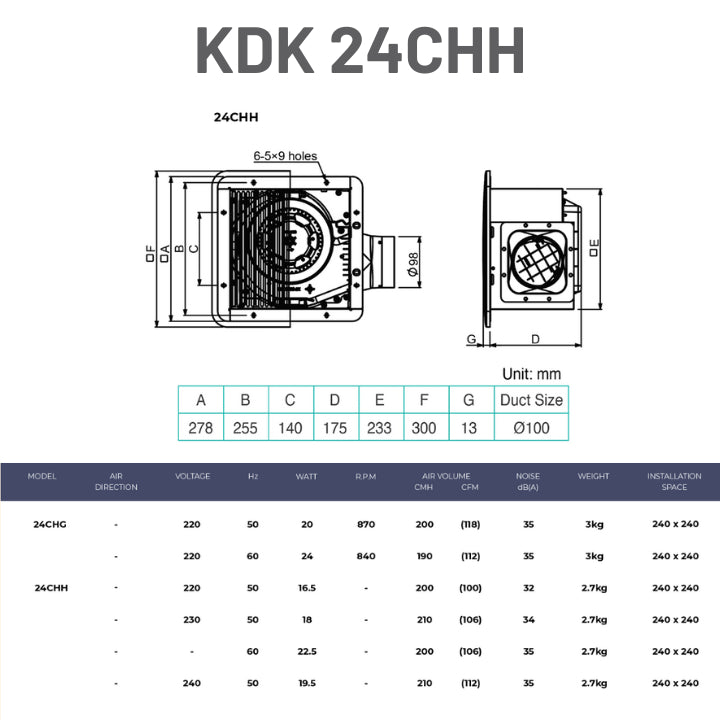

Model: 24CHH
Air Volume [CMH]: 200
Consumption [W]: 16.50
Noise [dB(A)]: 32
Duct Size [mm]: "Ø100
Installation Space [mm]: 233 x 233
Weight [kg]: 2.70
Model :27CHH
Air Volume
[CFM]: 180 / 127
[CMH]: 305 / 215
Consumption [W]: 25/ 19
Noise [dB(A)]: 33/ 27
RPM [min-1]: 520/ 405
Duct Size [mm]: Ø150
Installation Space [mm]270 x 270
Weight [kg]: 4.40
Model :32CHH
RPM: High 790 Low 540
Capacity (CFM): 471
Motor W : 122
Motor Rating : 220-240V / 50 Hz
Motor Type: 4 Pole Condenser
Noise Level (dB): 50
Net Weight (kg): 10.40
